About SmartKITSETS Plans

SmartKITSETS provides a unique range of Building Plans for Builders and DIYers
SmartKITSETS is a brand of SmartPLANZ, a New Zealand design company specialising in small residential building design. Plans have been designed for Builders wanting to reduce on-site building time and for non-licenced Owner-Builders wanting to do their own DIY build. There are a large number of floor plans that can be quickly modified to provide plans for over 8,000 unique Designs All plans comply with the Building Code, NZS3604 and any required District Plan rules.
There are four types of Plans:
BUILDING PLANS
MANUFACTURING PLANS
MATERIAL SCHEDULES
DIY ASSEMBLY PLANS

BUILDING PLANS

Building Plans are for Registered Builders and DIY Owner-Builders.
They come in an A3 format and include:

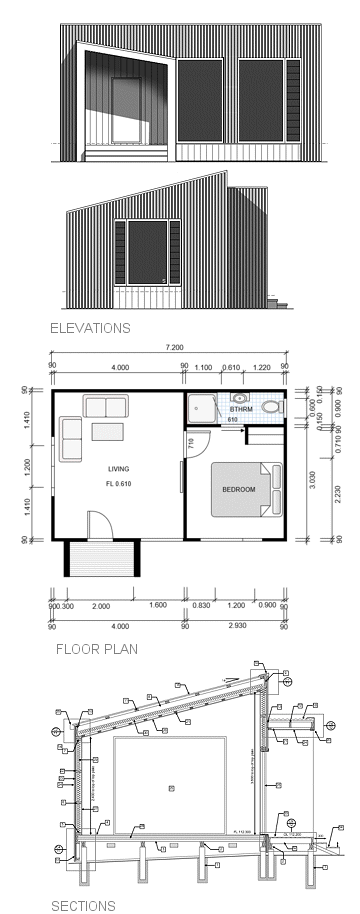

PRELIMINARY PLANS
The first stage in getting the plans to a workable design that best suits client's living and site requirements.

This includes:
	A code compliant Design
	Floor Plan
	Elevations
	Material Specifications

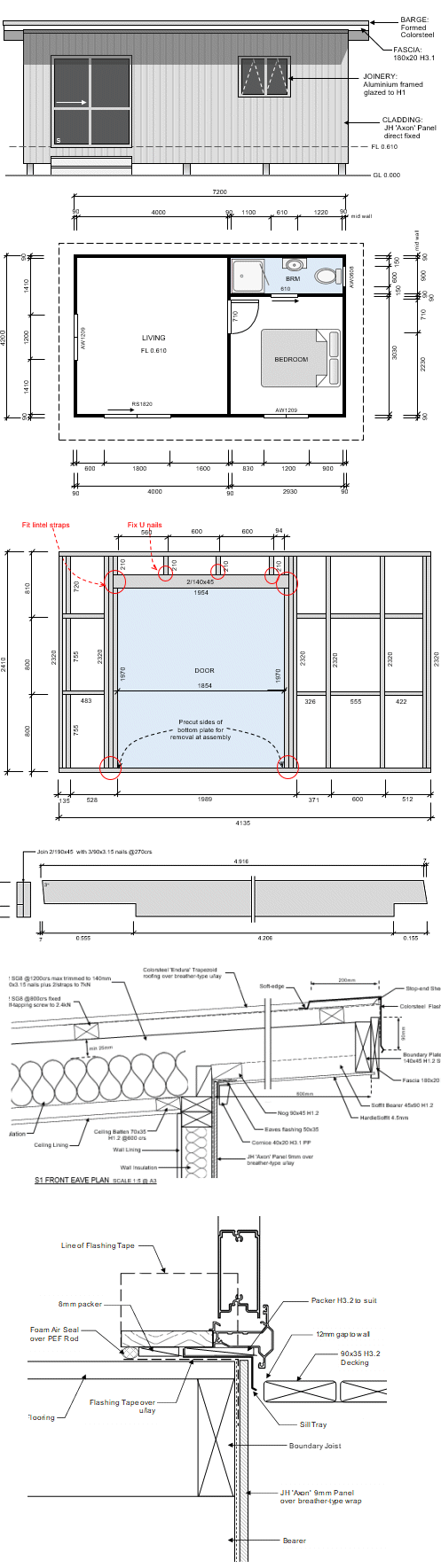

FULL PLANS:
Our drawings fully comply with the NZ Building Code and any specific Local Authority regulations we are aware of that may apply.
They contain all information and details an experienced tradesman requires to build the building on site.

These typically include:
	Floor Plans
	Elevations
	Foundations
	Floor Frame
	Roof Frame
	Bracing
	Building Crosas Section
	Building Long Section
	Cladding Section Details
	Joinery Section Details
	Plumbing and Drainage
	Material Specifications

For BUILDING CONSENT Site plans and Specifications required by councils are, added to these Design Plans.

MANUFACTURING PLANS

Manufacturing Plans have assembly ;details for major components to be built.
They are ideal for Builders supplying components and DIYers building their complete buildings.

They Include:

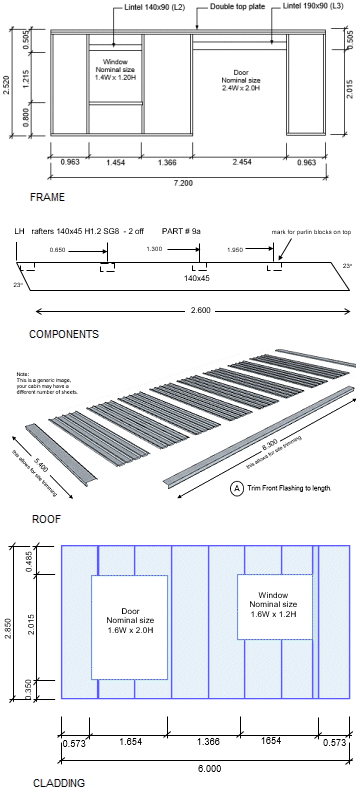

MAJOR COMPONENT DRAWINGS

These typically include:
	Wall Framing
	Roof Framing
	Roofing and Flashings
	Cladding

Drawings are fully dimensioned and detailed for off-site or on-site construction.

They also show component construction for Builders wanting to supply Kitsets.

MATERIAL SCHEDULES

Material Schedules are for Ordering or getting Quotes.
Ideal for both Builders and DIYers to get material pricing and orders.

These typically include:
	Foundations
	Framing
	Roofing
	Cladding
	Gutters
	Joinery
	Lining

Material Schedules are split into specific material groups so each can be used for Ordering or getting Quotes from the appropriate suppliers.

DIY ASSEMBLY PLANS

DIY Assembly Plans are designed to let non-experienced Builders and DIYers achieve a code-compliant building.
	DIY ASSEMBLY INSTRUCTIONS These plans include comprehensive 3D step-by-step assembly instructions for each stage of construction. They are designed for non-builders but also allow Licensed builders to provide kitsets to their clients. Assembly details include:

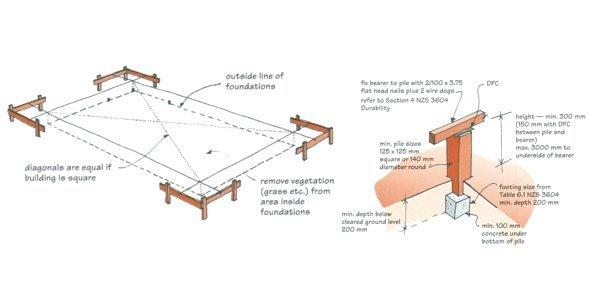

	Site setup SmartPLANZ provides all drawings and instructions for accurate site set up and foundations.

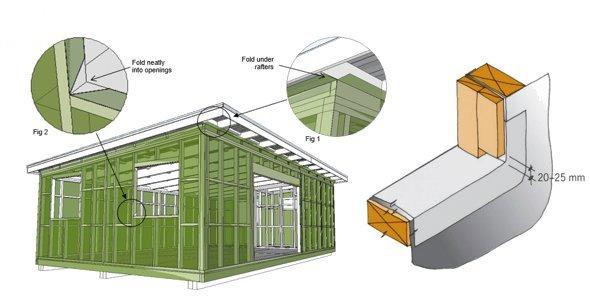

	Frame Assembly SmartPLANZ provides comprehensive step-by-step assembly instructions for each stage of construction. These are designed for non-builders but will also save Licensed builders on-site organistion time.

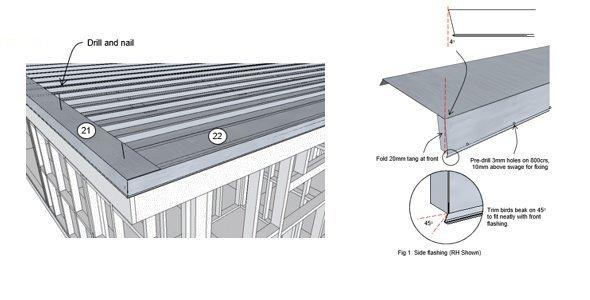

	Trade Techniques SmartPLANZ show trade techniques for preparing and fitting all materials
	Code Compliance SmartPLANZ also covers all Building Code compliance techiques and best trade practices.

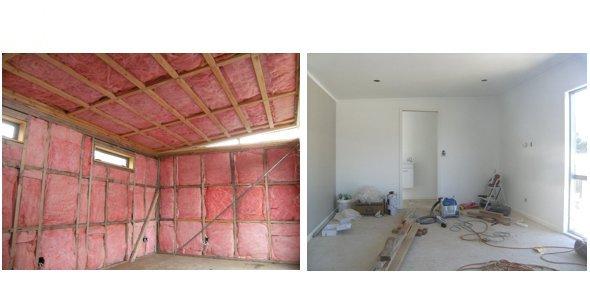

	Lining and Interior SmartPLANZ provides full schedules for all materials including: Insulation, wall and ceiling linings, interior doors, skirtings, scotias, architraves, fixings and fastenings.
	Building Inspection Following the sequence of instructions will ensure that all details for each stage of building inspection will be compliant.
